Understanding & Exploring Digital Audio as Data

# Imports
import numpy as np
import matplotlib.pyplot as plt
from pathlib import Path

import librosa, librosa.display
import sounddevice as sd
import soundfile as sf

from IPython.display import Audio

# Configure plotting aesthetics for clear data visualization
%matplotlib inline
plt.style.use('seaborn-v0_8-whitegrid') if 'seaborn-v0_8-whitegrid' in plt.style.available else plt.style.use('default')
plt.rcParams['figure.figsize'] = [12, 4]
plt.rcParams['figure.dpi'] = 100

# --- DSP Parameters ---
sampling_rate = 44100  # f_s: Temporal discretization rate (Hz)
duration = 2.0         # Total signal duration in seconds
frequency = 200.0      # Target fundamental pitch (Hz) - Concert A4
amplitude = 0.9      # Peak scalar amplitude (normalized volume range: 0.0 to 1.0)

# 1. Generate a discrete 1D time array from 0 to 'duration'
# Total samples = sampling_rate * duration
total_samples = int(sampling_rate * duration)
time_array = np.linspace(0, duration, total_samples, endpoint=False)

# 2. Synthesize the composite wave function: y = A * sin(2 * pi * f * t)
audio_signal = amplitude * np.sin(2 * np.pi * frequency * time_array)
print(audio_signal)

# Render the interactive HTML5 audio playback widget
Audio(audio_signal, rate=sampling_rate, normalize=False) # Set normalize=False to preserve original amplitude levels

# Define a micro-window to display roughly 3 complete cycles
# At 440 Hz, one cycle takes ~0.00227 seconds
zoom_samples = int(sampling_rate * (3 / frequency))

plt.figure(figsize=(14, 5))

# Plot the underlying inferred continuous wave function
plt.plot(time_array[:zoom_samples], audio_signal[:zoom_samples],
         color='#1f77b4', alpha=0.5, label='Inferred Continuous Signal')

# Plot the actual discrete sample payloads stored by the computer
plt.stem(time_array[:zoom_samples], audio_signal[:zoom_samples],
         linefmt='C0-', markerfmt='C0o', basefmt='k-',
         label='Discrete Samples (Scalar Amplitudes)')

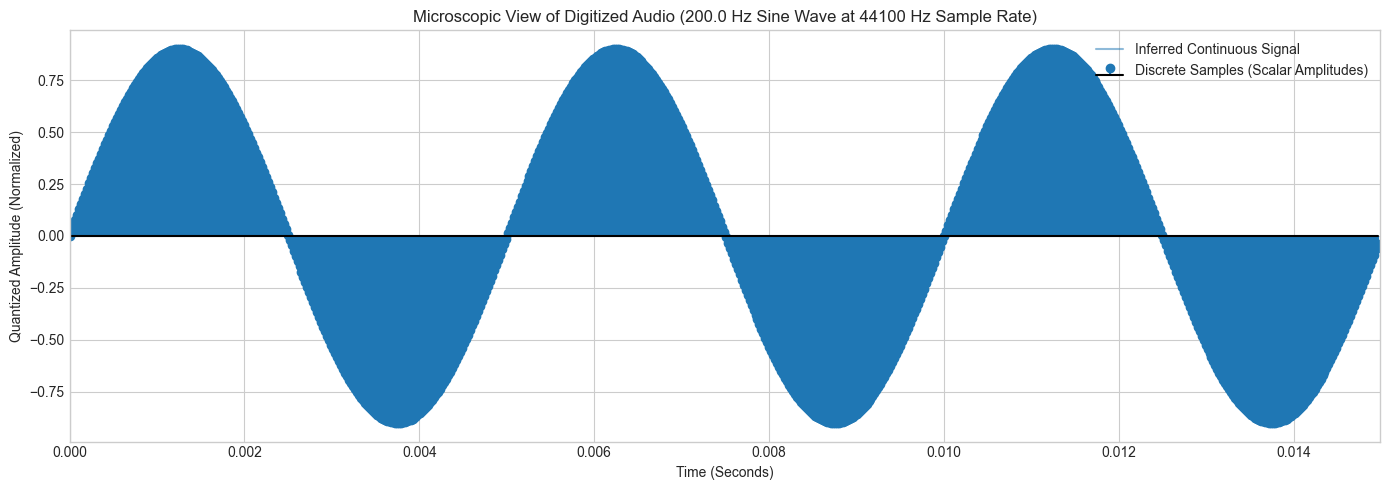

plt.title(f"Microscopic View of Digitized Audio ({frequency} Hz Sine Wave at {sampling_rate} Hz Sample Rate)")
plt.xlabel("Time (Seconds)")
plt.ylabel("Quantized Amplitude (Normalized)")
plt.legend(loc='upper right')
plt.xlim(0, time_array[zoom_samples])
plt.tight_layout()
plt.show()

# Setup global sample rate (CD Quality Baseline)
fs = 44100  # Sampling frequency [cite: 61]
t = np.linspace(0, 1.5, int(fs * 1.5), endpoint=False) # 1.5 seconds duration [cite: 50]

# Generate two distinct fundamental frequencies (Concert A4 and C5 Major Third)
f1 = 440.0   # A4
f2 = 554.37  # C#5

# Synthesize pure tones
tone1 = 0.4 * np.sin(2 * np.pi * f1 * t)
tone2 = 0.4 * np.sin(2 * np.pi * f2 * t)

# 1. Sequential Playback: Concatenate the arrays along the time axis
sequential_signal = np.concatenate((tone1, tone2))

# 2. Linear Superposition: Algebraic summation of vectors
# We multiply by 0.5 to prevent digital clipping across the fixed quantization scale
composite_signal = 0.5 * (tone1 + tone2)

print("Sequential Vector Shape:", sequential_signal.shape)
print("Composite Vector Shape :", composite_signal.shape)

# Interactive Evaluation (Toggle code comments to audit sounds)
# Audio(sequential_signal, rate=fs, normalize=False)
Audio(composite_signal, rate=fs, normalize=False)

# Reference frequencies for standard Octave 4 major scale notes
NOTE_FREQS = {
    'C': 261.63, 'D': 293.66, 'E': 329.63, 'F': 349.23,
    'G': 392.00, 'A': 440.00, 'B': 493.88
}

def generate_instrument_note(note='A', octave=4, instrument='flute', duration=1.5, fs=44100):
    """
    Parametric generator simulating instrument timbre via harmonic superposition and envelopes.
    """
    # Calculate fundamental frequency scaled by target octave relative to base Octave 4
    f0 = NOTE_FREQS[note] * (2 ** (octave - 4))
    t = np.linspace(0, duration, int(fs * duration), endpoint=False)

    if instrument == 'flute':
        # Flute recipe: Strong fundamental, weak upper harmonics
        wave = (1.0 * np.sin(2 * np.pi * f0 * t) +
                0.1 * np.sin(2 * np.pi * (2 * f0) * t) +
                0.05 * np.sin(2 * np.pi * (3 * f0) * t))
        # Smooth window envelope to prevent onset/offset clicks
        envelope = np.sin(np.pi * t / duration) ** 0.5

    elif instrument == 'piano':
        # Piano recipe: Rich complex harmonics with a sharp attack and exponential decay
        wave = (1.0 * np.sin(2 * np.pi * f0 * t) +
                0.6 * np.sin(2 * np.pi * (2 * f0) * t) +
                0.4 * np.sin(2 * np.pi * (3 * f0) * t) +
                0.2 * np.sin(2 * np.pi * (4 * f0) * t))
        # Exponential decay envelope modeling string energy dissipation
        envelope = np.exp(-3.0 * t)

    else:
        raise ValueError("Instrument options: 'flute' or 'piano'")

    # Normalize signal payload within standard range
    signal = wave * envelope
    return signal / np.max(np.abs(signal)) * 0.5

# --- Student Experimentation Block ---
# Students can alter parameters here to evaluate timbre shifts across different octaves
experiment_signal = generate_instrument_note(note='A', octave=5, instrument='piano')
Audio(experiment_signal, rate=fs, normalize=False)

duration_rec = 3.0  # Recording window in seconds
fs_rec = 44100      # Target spatial-temporal sampling rate [cite: 55]

print(f"Beginning {duration_rec} second audio recording block. Speak into microphone...")

# Ingest data as mono stream (1 channel) [cite: 52]
# Returns a 2D NumPy array with shape (samples, channels)
raw_recording = sd.rec(int(duration_rec * fs_rec), samplerate=fs_rec, channels=1, dtype='float32')
sd.wait()  # Block execution until hardware buffer fills completely

# Flatten matrix to a standard 1D array vector for processing
recording_signal = raw_recording.flatten()
print("Ingestion complete. Transduced Vector Shape:", recording_signal.shape)

# Playback captured audio
Audio(recording_signal, rate=fs_rec, normalize=True)

from scipy.io import wavfile

# Write synthesis or recording out to storage container (.WAV wrapper format) [cite: 105]
wavfile.write('ls100_output.wav', fs_rec, (recording_signal * 32767).astype(np.int16))
print("File written successfully using 16-bit PCM quantization grid[cite: 72, 104].")

# Read an existing file back into memory
input_fs, input_data = wavfile.read('ls100_output.wav')
print(f"File Data Ingested: Sample Rate = {input_fs} Hz | Data Array Type = {input_data.dtype}")

plt.figure(figsize=(12, 4))
# Convert sample indices back into true temporal coordinates for the x-axis
time_axis = np.linspace(0, len(input_data) / input_fs, len(input_data))

plt.plot(time_axis, input_data, color='#2c3e50', linewidth=0.7)

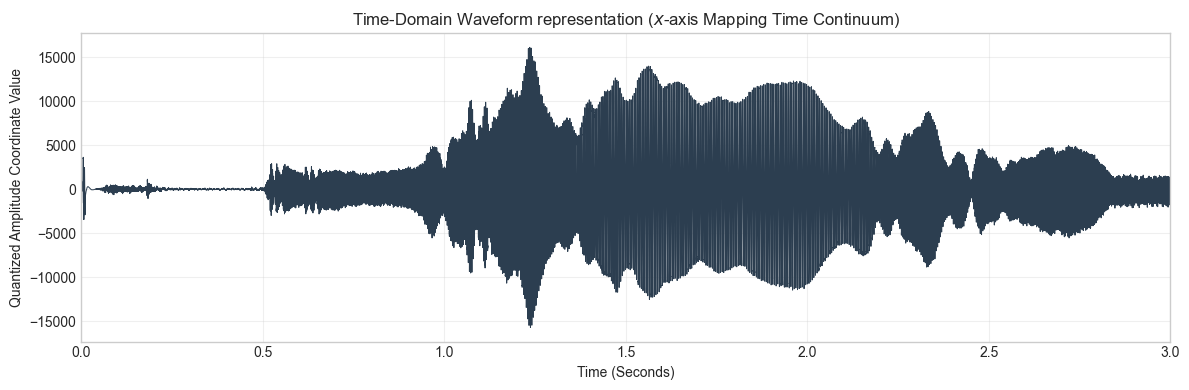

plt.title("Time-Domain Waveform representation ($x$-axis Mapping Time Continuum)", fontsize=12)
plt.xlabel("Time (Seconds)")
plt.ylabel("Quantized Amplitude Coordinate Value")
plt.xlim(0, time_axis[-1])
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

plt.figure(figsize=(12, 5))
# Generate 2D time-frequency distribution plot using a Viridis colormap for density
power_spectrum, frequencies, times, im = plt.specgram(
    input_data,
    NFFT=1024,      # Window size for each discrete Fourier slice
    Fs=input_fs,    # Target sampling rate parameters [cite: 55]
    noverlap=512,   # 512-sample overlap for temporal smoothing
    cmap='viridis'
)

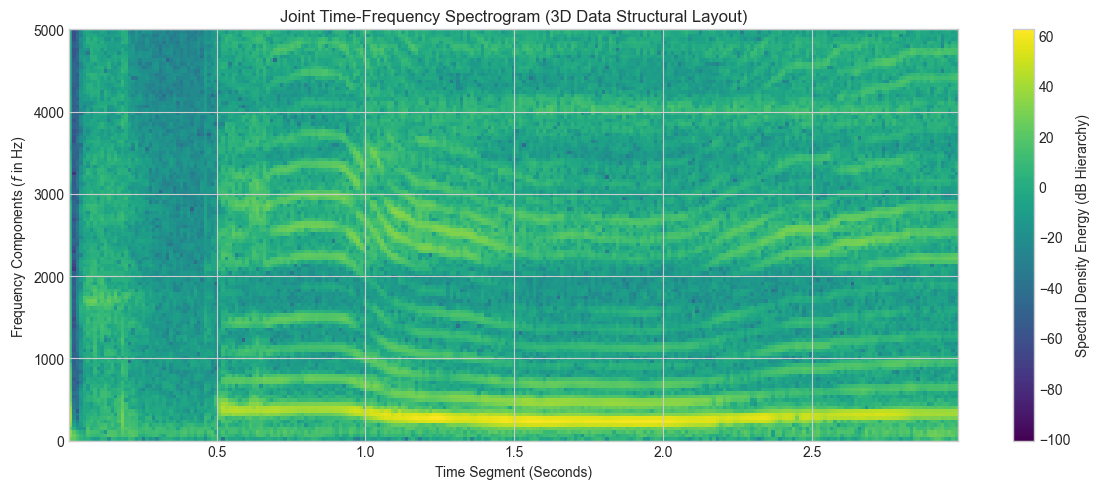

plt.title("Joint Time-Frequency Spectrogram (3D Data Structural Layout)", fontsize=12)
plt.xlabel("Time Segment (Seconds)")
plt.ylabel("Frequency Components ($f$ in Hz)")
plt.ylim(0, 5000) # Constrain view to the primary human vocal/musical window
cbar = plt.colorbar(im)
cbar.set_label("Spectral Density Energy (dB Hierarchy)")
plt.tight_layout()
plt.show()

audio_path = Path("/Users/souvikmandal/Documents/06_Teaching_Mentoring/LS100_comp_etho/2025/media/audio/music_tracks/Eagles_Hotel-California.mp3")  # change to your file
if audio_path.exists():
    y, sr = librosa.load(audio_path, sr=None)
    duration_sec = len(y) / sr
    print("Sample rate:", sr, "Hz  |  Samples:", len(y), "  |  Duration:", round(duration_sec, 2), "s")
else:
    print("Please set audio_path to a real .wav file on your machine.")

if 'y' in globals():
    plt.figure()
    librosa.display.waveshow(y, sr=sr)
    plt.title("Waveform")
    plt.xlabel("Time (s)")
    plt.ylabel("Amplitude")
    plt.show()
else:
    print("Load an audio file first.")

# NOTE: This requires local microphone access.
seconds = 3
sr = 16000
print("Recording for", seconds, "seconds...")
rec = sd.rec(int(seconds*sr), samplerate=sr, channels=1)
sd.wait()
rec = rec.flatten()
rec_path = Path("my_recording.wav")
sf.write(str(rec_path), rec, sr)
print("Saved recording to", rec_path)

if Path('my_recording.wav').exists():
    y_spec, sr_spec = librosa.load('my_recording.wav', sr=None)
elif 'y' in globals():
    y_spec, sr_spec = y, sr
else:
    y_spec, sr_spec = None, None

if y_spec is not None:
    import numpy as np
    S = np.abs(librosa.stft(y_spec, n_fft=1024, hop_length=256))
    S_db = librosa.amplitude_to_db(S, ref=np.max)
    plt.figure()
    librosa.display.specshow(S_db, sr=sr_spec, hop_length=256, x_axis='time', y_axis='log')

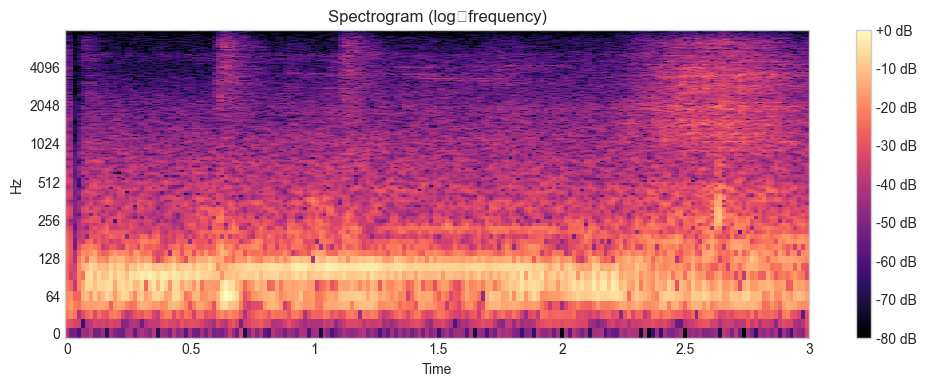

    plt.title('Spectrogram (log‑frequency)')
    plt.colorbar(format='%+2.0f dB')
    plt.show()
else:
    print("Record or load audio first to view a spectrogram.")

# you can use `librosa.feature.melspectrogram`
