Training a YOLO Pose Model for Custom Keypoint Tracking

# Install the necessary packages for AI, Computer Vision, and Data Science
print("📦 Installing laboratory equipment (this may take a minute)...")
!pip install ultralytics opencv-python pandas numpy scipy matplotlib tqdm | tail -1

import cv2
import os
import random
import glob
from tqdm import tqdm

def automate_frame_extraction(input_folder, frames_per_video=20, method="random"):
    """
    Automated extraction: Creates a unique folder for each video file
    within the same directory as the video.
    """
    print(f"Scanning for videos in: {input_folder}")

    if not os.path.exists(input_folder):
        print(f"ERROR: The directory '{input_folder}' does not exist.")
        return

    # Find video files (Case-Insensitive)
    video_files = []
    extensions = ('*.mp4', '*.MP4', '*.mov', '*.MOV', '*.avi', '*.AVI')
    for ext in extensions:
        video_files.extend(glob.glob(os.path.join(input_folder, ext)))

    if not video_files:
        print(f"No videos found! Files in directory: {os.listdir(input_folder)}")
        return

    print(f"Found {len(video_files)} video(s). Starting automated pipeline...")

    # Process each video independently
    for v_path in video_files:
        # Get directory and filename info
        v_dir = os.path.dirname(v_path)
        v_name = os.path.splitext(os.path.basename(v_path))[0]

        # Define the specific output folder for THIS video
        # Example: "MyStrike_extracted-frames_"
        output_subfolder = os.path.join(v_dir, v_name + "extracted-frames_")

        if not os.path.exists(output_subfolder):
            os.makedirs(output_subfolder)

        # Open video and get properties
        cap = cv2.VideoCapture(v_path)
        total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))

        if total_frames <= 0:
            print(f"Skipping {v_name} (Unable to read frame count).")
            cap.release()
            continue

        # Decide which frames to extract
        num_to_draw = min(frames_per_video, total_frames)
        if method == "evenly":
            indices = [int(i * (total_frames / num_to_draw)) for i in range(num_to_draw)]
        else: # random
            indices = random.sample(range(total_frames), num_to_draw)
            indices.sort()

        # Extract frames into the new sub-folder
        for idx in tqdm(indices, desc=f"Processing: {v_name}", leave=True):
            cap.set(cv2.CAP_PROP_POS_FRAMES, idx)
            success, frame = cap.read()
            if success:
                img_path = os.path.join(output_subfolder, f"{v_name}_f{idx:06d}.jpg")
                cv2.imwrite(img_path, frame)

        cap.release()
        print(f"Saved {num_to_draw} frames to: {os.path.basename(output_subfolder)}")

    print("\nPipeline complete! All videos have been processed into their respective folders.")

target_path = "/Users/souvikmandal/Documents/S06_Teaching_Mentoring_Talks/LS100/2026_Sem01/media/zuron/input_test" # Change this to your folder with videos

automate_frame_extraction(
    input_folder=target_path,
    frames_per_video=2,
    method="random"
)

!pip install label-studio | tail -1

if 'ls_process' in locals():
    ls_process.terminate()
    print("🛑 Cleaned up background processes.")

import json
import os
import shutil

def generate_bbox(kp_tip, kp_base, padding=0.05):
    """Calculates a bounding box around 2 keypoints with a slight padding."""
    pts_x = [p[0] for p in [kp_tip, kp_base] if p[2] == 2]
    pts_y = [p[1] for p in [kp_tip, kp_base] if p[2] == 2]

    if not pts_x: return None # No visible points

    min_x, max_x = min(pts_x), max(pts_x)
    min_y, max_y = min(pts_y), max(pts_y)

    if len(pts_x) == 1:
        w, h = padding * 2, padding * 2
    else:
        w = (max_x - min_x) + (padding * 2)
        h = (max_y - min_y) + (padding * 2)

    cx = (min_x + max_x) / 2.0
    cy = (min_y + max_y) / 2.0

    return [max(0, min(1, cx)), max(0, min(1, cy)), max(0, min(1, w)), max(0, min(1, h))]

def prepare_custom_yolo_dataset(json_path, source_images_dir, output_dir="CustomObject_Dataset"):
    print("🔄 Starting Data Translation & Box Generation...")

    images_dir, labels_dir = os.path.join(output_dir, 'images'), os.path.join(output_dir, 'labels')
    os.makedirs(images_dir, exist_ok=True)
    os.makedirs(labels_dir, exist_ok=True)

    with open(json_path, 'r') as f: data = json.load(f)

    processed_count = 0

    for task in data:
        raw_image_path = task['data']['img'] if 'img' in task['data'] else task['data']['image']
        basename = os.path.basename(raw_image_path)

        # FIX: We only split on the FIRST hyphen.
        # So "607354f7-Ignis_Training1-1_Strikes.jpg" becomes "Ignis_Training1-1_Strikes.jpg"
        if '-' in basename:
            image_filename = basename.split('-', 1)[1]
        else:
            image_filename = basename

        src_image_path, dst_image_path = os.path.join(source_images_dir, image_filename), os.path.join(images_dir, image_filename)

        if not task.get('annotations') or not task['annotations'][0].get('result'):
            continue

        results = task['annotations'][0]['result']

        object1_tip, object1_base = [0.0, 0.0, 0], [0.0, 0.0, 0]
        object2_tip, object2_base = [0.0, 0.0, 0], [0.0, 0.0, 0]

        for item in results:
            if item['type'] == 'keypointlabels':
                val = item['value']
                kx, ky = val['x'] / 100.0, val['y'] / 100.0
                label = val['keypointlabels'][0]

                if label == 'object1_tip': object1_tip = [kx, ky, 2]
                elif label == 'object1_base': object1_base = [kx, ky, 2]
                elif label == 'object2_tip': object2_tip = [kx, ky, 2]
                elif label == 'object2_base': object2_base = [kx, ky, 2]

        yolo_lines = []

        # Process Object 1 (Class 0)
        object1_box = generate_bbox(object1_tip, object1_base)
        if object1_box:
            yolo_lines.append(f"0 {object1_box[0]:.6f} {object1_box[1]:.6f} {object1_box[2]:.6f} {object1_box[3]:.6f} {object1_tip[0]:.6f} {object1_tip[1]:.6f} {object1_tip[2]} {object1_base[0]:.6f} {object1_base[1]:.6f} {object1_base[2]}\n")

        # Process Object 2 (Class 1)
        object2_box = generate_bbox(object2_tip, object2_base)
        if object2_box:
            yolo_lines.append(f"1 {object2_box[0]:.6f} {object2_box[1]:.6f} {object2_box[2]:.6f} {object2_box[3]:.6f} {object2_tip[0]:.6f} {object2_tip[1]:.6f} {object2_tip[2]} {object2_base[0]:.6f} {object2_base[1]:.6f} {object2_base[2]}\n")

        if yolo_lines:
            txt_filepath = os.path.join(labels_dir, os.path.splitext(image_filename)[0] + '.txt')
            with open(txt_filepath, 'w') as f:
                f.writelines(yolo_lines)

            if os.path.exists(src_image_path):
                shutil.copy(src_image_path, dst_image_path)
                processed_count += 1
            else:
                print(f"⚠️ Image missing: {src_image_path}")

    print(f"✅ Conversion Complete! Processed {processed_count} frames into '{output_dir}'.")

# ==========================================
# EXECUTE THE CONVERSION
# ==========================================
# UPDATE THIS PATH to where your extracted frames are!
SOURCE_IMAGES = "/Users/souvikmandal/Documents/S06_Teaching_Mentoring_Talks/LS100/2026_Sem01/media/zuron/input_test/Ignis_Training1-1_Strikes_Uncutextracted-frames_"

prepare_custom_yolo_dataset("labels.json", SOURCE_IMAGES)

import os
import yaml

# Get absolute path to ensure YOLO finds the dataset
dataset_folder = "CustomObject_Dataset"
abs_path = os.path.abspath(dataset_folder)

yaml_data = {
    'path': abs_path,
    'train': 'images',
    'val': 'images',
    'names': {
        0: 'Object_1',
        1: 'Object_2'
    },
    'kpt_shape': [2, 3] # 2 keypoints (Tip, Base), 3 values each (x, y, visibility)
}

yaml_file_path = os.path.join(dataset_folder, 'data.yaml')

with open(yaml_file_path, 'w') as f:
    yaml.dump(yaml_data, f, sort_keys=False)

print(f"✅ Configuration saved to: {yaml_file_path}")

from torch._C import device
from ultralytics import YOLO
import os

# ==========================================
# CHANGE THESE SETTINGS BEFORE TRAINING
# ==========================================

num_epochs = 5 # Change this to 50 for a full training run, but we'll use 5 for testing purposes
device = 'mps' # Change to 'gpu' if you have a compatible GPU, 'mps' if on a Mac Apple Silicon chip, or 'cpu' if you have just CPU support.

print("Initializing YOLO Pose Model...")

# Load the pre-trained nano pose model
model = YOLO('yolo26n-pose.pt')

dataset_yaml_path = os.path.abspath("CustomObject_Dataset/data.yaml")

print(f"Starting training... This will process {num_epochs} epochs.")

# Train the model
results = model.train(
    data=dataset_yaml_path,
    epochs=num_epochs,
    imgsz=640,
    project='Object_Tracker_Runs',
    name='custom_object_model',
    device=device
)

print("✅ Training Complete!")
print("The custom YOLO Model is saved in: Object_Tracker_Runs/custom_object_model/weights/best.pt")

import pandas as pd
import matplotlib.pyplot as plt
from IPython.display import Image, display
import os

print("Loading Training Metrics...\n")

run_dir = 'runs/pose/Object_Tracker_Runs/custom_object_model'

# ---------------------------------------------------------

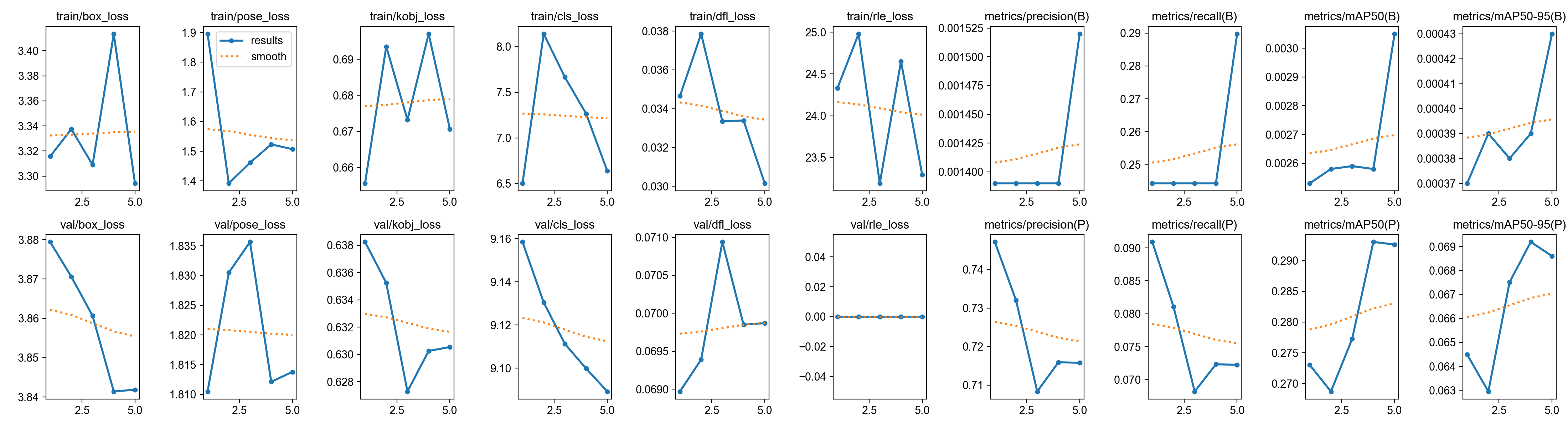

# OPTION 1: View YOLO's Auto-Generated Summary Grid
# ---------------------------------------------------------
results_img_path = os.path.join(run_dir, 'results.png')
if os.path.exists(results_img_path):
    print("Here is the complete training overview generated by YOLO:")
    display(Image(filename=results_img_path, width=800))
else:
    print("Could not find YOLO's auto-generated results.png")

# ---------------------------------------------------------
# OPTION 2: Plot the raw CSV data ourselves using Pandas!
# ---------------------------------------------------------
csv_path = os.path.join(run_dir, 'results.csv')

if os.path.exists(csv_path):
    # Read the data
    df = pd.read_csv(csv_path)
    # YOLO adds weird spaces to column names, so we strip them
    df.columns = df.columns.str.strip()

    # Create a custom plot
    plt.figure(figsize=(12, 5))

    # Plot 1: The Loss Curve (Should go down)
    plt.subplot(1, 2, 1)
    if 'train/pose_loss' in df.columns:
        plt.plot(df['epoch'], df['train/pose_loss'], label='Training Pose Loss', color='red', linewidth=2)
        plt.plot(df['epoch'], df['val/pose_loss'], label='Validation Pose Loss', color='orange', linewidth=2)
    plt.title('Keypoint (Pose) Error Over Time\n(Lower is Better)')
    plt.xlabel('Epoch')
    plt.ylabel('Loss')
    plt.legend()
    plt.grid(True, linestyle='--', alpha=0.6)

    # Plot 2: The Accuracy Curve (Should go up)
    plt.subplot(1, 2, 2)
    if 'metrics/mAP50(P)' in df.columns:
        plt.plot(df['epoch'], df['metrics/mAP50(P)'], label='Pose Accuracy (mAP@50)', color='green', linewidth=2)
    plt.title('Keypoint Detection Accuracy\n(Higher is Better)')
    plt.xlabel('Epoch')
    plt.ylabel('mAP (0 to 1.0)')
    plt.legend()
    plt.grid(True, linestyle='--', alpha=0.6)

    plt.tight_layout()
    plt.show()
else:
    print("⚠️ Could not find results.csv")

from ultralytics import YOLO
import pandas as pd
import numpy as np
import cv2
import os
from tqdm import tqdm

def extract_object_kinematics(video_path, model_path):
    # 1. Dynamically generate the output CSV filename
    base_name = os.path.basename(video_path)                  # e.g., "my_video.mp4"
    file_name_without_ext = os.path.splitext(base_name)[0]    # e.g., "my_video"
    output_csv = f"{file_name_without_ext}_custom_model_objectTracking_data.csv"

    print(f"Loading custom model from: {model_path}")
    model = YOLO(model_path)

    # 2. Get the total frame count for our progress bar
    cap = cv2.VideoCapture(video_path)
    total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
    cap.release()

    print(f"Processing video ({total_frames} frames): {video_path}")

    # verbose=False STOPS YOLO from printing every single frame to the screen
    results = model.predict(source=video_path, stream=True, conf=0.1, verbose=False)

    kinematics_data = []

    # 3. Extract the math frame-by-frame
    for frame_idx, result in enumerate(tqdm(results, total=total_frames, desc="📊 Extracting Data")):

        row = {
            'frame': frame_idx,
            'object1_tip_x': np.nan, 'object1_tip_y': np.nan,
            'object1_base_x': np.nan, 'object1_base_y': np.nan,
            'object2_tip_x': np.nan, 'object2_tip_y': np.nan,
            'object2_base_x': np.nan, 'object2_base_y': np.nan
        }

        if result.boxes is not None and result.keypoints is not None:
            class_ids = result.boxes.cls.cpu().numpy() # 0 = Attacking, 1 = Defending
            kpts = result.keypoints.xy.cpu().numpy()   # The X, Y coordinates

            for i, cls_id in enumerate(class_ids):
                if len(kpts[i]) >= 2:
                    tip = kpts[i][0]
                    base = kpts[i][1]

                    if cls_id == 0: # Object 1
                        if tip[0] != 0 or tip[1] != 0:
                            row['object1_tip_x'], row['object1_tip_y'] = tip[0], tip[1]
                        if base[0] != 0 or base[1] != 0:
                            row['object1_base_x'], row['object1_base_y'] = base[0], base[1]

                    elif cls_id == 1: # Object 2
                        if tip[0] != 0 or tip[1] != 0:
                            row['object2_tip_x'], row['object2_tip_y'] = tip[0], tip[1]
                        if base[0] != 0 or base[1] != 0:
                            row['object2_base_x'], row['object2_base_y'] = base[0], base[1]

        kinematics_data.append(row)

    # 4. Save to the dynamically named CSV
    df = pd.DataFrame(kinematics_data)
    df.to_csv(output_csv, index=False)

    print(f"\n✅ Extraction complete!")
    print(f"Saved {len(df)} frames of coordinate data to: '{output_csv}'")

    return df

# ==========================================
# EXECUTE THE EXTRACTION
# ==========================================
# 1. Provide the path to a completely new video of a strike
TEST_VIDEO = "/Users/souvikmandal/Documents/S06_Teaching_Mentoring_Talks/LS100/2026_Sem01/media/zuron/input_test/Ignis_Training1-1_Strikes_Uncut.MP4"

# 2. Point to the model we just finished training!
TRAINED_MODEL = "runs/pose/Object_Tracker_Runs/custom_object_model/weights/best.pt"

df_kinematics = extract_object_kinematics(TEST_VIDEO, TRAINED_MODEL)

print("\nSneak peek at your new Kinematics Dataset:")
print(df_kinematics.head())

import cv2
import pandas as pd
import numpy as np
import os
from tqdm import tqdm

def overlay_tracking_data(video_path, csv_path):
    # Dynamically name the output video
    base_name = os.path.basename(video_path)
    file_name_without_ext = os.path.splitext(base_name)[0]
    output_video = f"{file_name_without_ext}_tracking_overlay.mp4"

    print(f"Loading coordinate data from: {csv_path}")
    df = pd.read_csv(csv_path)

    print(f"Opening original video: {video_path}")
    cap = cv2.VideoCapture(video_path)

    # Grab video properties to configure the output writer
    width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
    height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
    fps = int(cap.get(cv2.CAP_PROP_FPS))
    total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))

    # Setup the video writer (mp4 format)
    fourcc = cv2.VideoWriter_fourcc(*'mp4v')
    out = cv2.VideoWriter(output_video, fourcc, fps, (width, height))

    for frame_idx in tqdm(range(total_frames), desc="Drawing Skeletons"):
        ret, frame = cap.read()
        if not ret:
            break  # End of video

        # Check if we have data for this frame in our CSV
        if frame_idx < len(df):
            row = df.iloc[frame_idx]

            # Draw Object 1 (Red Line)
            # We check if the data is NOT a NaN value
            if not pd.isna(row['object1_tip_x']) and not pd.isna(row['object1_base_x']):
                tip = (int(row['object1_tip_x']), int(row['object1_tip_y']))
                base = (int(row['object1_base_x']), int(row['object1_base_y']))

                # cv2.line(image, start_point, end_point, color(B,G,R), thickness)
                cv2.line(frame, tip, base, (0, 0, 255), 4)       # Red Line
                cv2.circle(frame, base, 6, (0, 0, 255), -1)      # Red Base Dot
                cv2.circle(frame, tip, 6, (0, 255, 255), -1)     # Yellow Tip Dot

            # Draw Object 2 (Blue Line)
            if not pd.isna(row['object2_tip_x']) and not pd.isna(row['object2_base_x']):
                tip = (int(row['object2_tip_x']), int(row['object2_tip_y']))
                base = (int(row['object2_base_x']), int(row['object2_base_y']))

                cv2.line(frame, tip, base, (255, 0, 0), 4)       # Blue Line
                cv2.circle(frame, base, 6, (255, 0, 0), -1)      # Blue Base Dot
                cv2.circle(frame, tip, 6, (0, 255, 255), -1)     # Yellow Tip Dot

        # Write the modified frame to our new video
        out.write(frame)

    cap.release()
    out.release()
    cv2.destroyAllWindows()

    print(f"\nVideo render complete!")
    print(f"Saved annotated video to: '{output_video}'")

# ==========================================
# EXECUTE THE RENDER
# ==========================================
# 1. Provide the path to your original video
TEST_VIDEO = "/Users/souvikmandal/Documents/S06_Teaching_Mentoring_Talks/LS100/2026_Sem01/media/zuron/input_test/Ignis_Training1-1_Strikes_Uncut.mp4"

# 2. Provide the path to the CSV we just generated
CSV_DATA = "Ignis_Training1-1_Strikes_Uncut_custom_model_objectTracking_data.csv"

overlay_tracking_data(TEST_VIDEO, CSV_DATA)
